Test Setup

Published on 11th May 2010 by Harry Butler

How we tested

As always, we did our best to deliver a clean set of benchmarks, with each test repeated three times and an average of those results is what we’re reporting here. In the rare case where performance was inconsistent, we continued repeating the test until we got three results that were consistent.

The tests performed are a mixture of custom in-game timedemos and manually played sections, using FRAPS to record the average and minimum frame rates. We strive to not only record real-world performance you will actually see, but also present the results in a manner that is easy to digest.

Intel Core i7 Test System

Intel Core i7-965 processor (3.2GHz: 133MHz x 24)
Asus P6T V2 motherboard (Intel X58 Express with three PCI-Express 2.0 x16 slots)
3x 2GB Corsair TR3X6G1333C9 memory modules (operating in dual channel at DDR3 1,600MHz 9-9-9-24-1T)
Corsair X128 120GB SSD running v1 firmware
Corsair HX1000W PSU
Windows 7 Home Premium x64
Antec Twelve Hundred Chassis

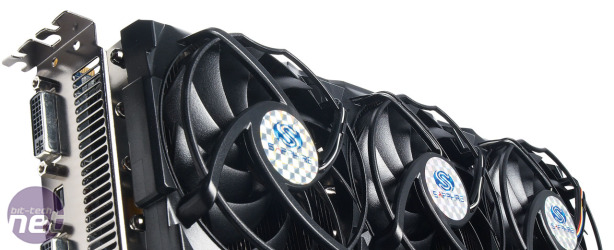

Sapphire Radeon HD 5970 4GB Toxic Review Test Setup

ATI graphics cards

Sapphire ATI Radeon HD 5970 4GB Toxic (900MHz GPU, 4.8GHz memory) using Catalyst 10.3
AMD ATI Radeon HD 5970 2GB (725MHz GPU, 4GHz memory) using Catalyst 10.3 WHQL
AMD ATI Radeon HD 5870 1GB (850MHz GPU, 4.8GHz memory) using Catalyst 10.3 WHQL
AMD ATI Radeon HD 5850 1GB (725MHz GPU, 4GHz memory) using Catalyst 10.3 WHQL

Nvidia graphics cards

Nvidia GeForce GTX 480 1.5GB (700MHz core, 1,401MHz stream processors, 3.7GHz memory) using ForceWare 197.17 BETA
Nvidia GeForce GTX 470 1.3GB (607MHz core, 1,215MHz stream processors, 3.3GHz memory) using ForceWare 197.17 BETA
Nvidia GeForce GTX 295 2GB (2 x 576MHz core, 1,242MHz stream processors, 2GHz memory) using ForceWare 196.21 WHQL
Nvidia GeForce GTX 285 1GB] - (648MHz core, 1,476MHz stream processors, 2GHz memory) using ForceWare 196.21 WHQL
