Testing Time

We followed our standard case testing methodology, as detailed in our previous heatsink and case testing article, and fitted the usual set of hardware into the NZXT Whisper, doing our best to hide and tidy cables to ensure as few airflow restrictions as possible, which in this case proved very difficult indeed. Here's a reminder of the hardware we use.

CPU: Lapped Intel Pentium XE 955 (dual-core, 3.46GHz)
Graphics Card: Sapphire Radeon HD 3850 Ultimate passive cooled
Motherboard: MSI P6N SLI Platinum
RAM: 2x 512MB Corsair XMS2-667
Hard Drive: 1x 250GB Western Digital WD2500 7,200RPM
Heatsink: Asus Silent Square Pro
Power Supply: Xilence XP700 700W PSU

While this isn't representative of current ultra high end hardware, the equipment we use is specifically selected to kick out the maximum amount of heat inside the case, with a passively cooled graphics card and 130W TDP processor at its core to really heat things up and push the case's ability to cope with toasty components to the limit.

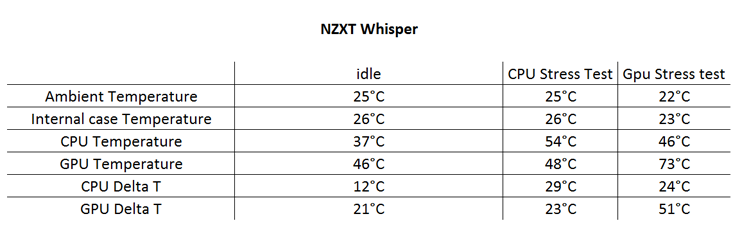

In our experience, the CPU stress test is a good test to indicate a case's ability to exhaust hot air and the GPU stress test is a better indicator of a case's intake ability as the GPU is generally further from the exhaust fan and so its operating temperatures rely more on case airflow than exhaust.

With such a limited intake and exhaust capacity, and with no intake whatsoever for the main hardware enclosure, we were a little concerned for the thermal performance of the NZXT and its ability to keep our high thermal output hardware cool.
